MG132/320-WD 電牽引采煤機零部件易損件(18MJ) |
|
序號 |
名稱 |
圖號 |
材料 |
配置數量 |
單個重量 |
|
1 |
銷軸組件 |
18MJ13 |
|
22 |
47.8584 |
|
2 |
銷軸 |
18MJ-2 |
30CrMnTi |
21 |
10.8 |
|
3 |
機外水管 |
18MJ69 |
|
21 |
47.4924 |
|
4 |
托纜架 |
18MJ72 |
|
31 |
18.778 |
|
5 |
液壓螺母M42×3 |
GY42 |
|
85 |
2.2 |
|
6 |
調高油缸 |
18MJ09 |
|
2 |
166.675 |
|
7 |
外接油管組 |
18MJ70 |
|
1 |
28.4832 |
|
8 |
操作站 |
|
|
2 |
1 |
|
9 |
行星減速器 |
18MJ0205 |
|
1 |
277.079 |
|
10 |
襯套 |
12MJ02-8A |
20CrMnTi |
2 |
1.6 |
|
11 |
襯套 |
12MJ02-7A |
20CrMnTi |
1 |
1.6 |
|
12 |
襯套1 |
18MJ02-4 |
40Cr |
1 |
1.8 |
|
13 |
襯套4 |
18MJ02-7 |
40Cr |
1 |
1.2 |
|
14 |
襯套5 |
18MJ02-8 |
40Cr |
1 |
1.2 |
|
15 |
堵 |
18MJ02-9 |
45# |
1 |
0.5 |
|
16 |
一軸 |
18MJ0202 |
|
1 |
8.697 |
|
17 |
二軸 |
18MJ0204 |
|
1 |
15.863 |
|
18 |
惰輪軸 |
18MJ0203 |
|
1 |
3.418 |
|
19 |
油標 |
18MJ0206 |
|
1 |
0.1717 |
|
20 |
液壓排氣閥 QLY-10×0.63 |
1990701020 |
不銹鋼 |
1 |
|
|
21 |
電動機 YBQYS3-25 |
1030101002 |
|
|
362
|
|
22 |
一軸 |
18MJ0302A |
|
1 |
39.7601 |
|
23 |
惰輪一軸 |
12MJ0303A |
|
1 |
23.189 |
|
24 |
二軸 |
12MJ0304A |
|
1 |
99.176 |
|
25 |
三軸 |
12MJ0305A |
|
1 |
92.846 |
|
26 |
惰輪二軸 |
12MJ0306 |
|
1 |
52.442 |
|
27 |
襯套 |
12MJ03-10 |
40Cr |
1 |
2.3 |
|
28 |
分配盤 |
12MJ03-6 |
45# |
1 |
12.2 |
|
29 |
安全圈 |
S3-0300087 |
65Mn |
1 |
0.022 |
|
30 |
行星機構 |
12MJ0307A |
|
|
884.255 |
|
31 |
大軸承座 |
12MJ03-4 |
ZG35CrMnSi |
1 |
19.97 |
|
32 |
小軸承座 |
12MJ03A-3 |
ZG35CrMnSi |
1 |
18.21 |
|
33 |
大齒輪 |
12MJ03A-2 |
18Cr2Ni4WA |
1 |
54.76 |
|
34 |
電動機 YBCS2-132 |
1030201008 |
|
|
735 |
|
35 |
襯套1 |
18MJ02-4 |
40Cr |
1 |
1.8 |
|
36 |
襯套 |
12MJ02-7A |
20CrMnTi |
1 |
1.6 |
|
37 |
襯套 |
12MJ02-8A |
20CrMnTi |
2 |
1.3 |
|
38 |
PZA25-75噴嘴 |
1990500007 |
|
3 |
|
|
39 |
Q/JM192-2005油標M30×1.5 |
2100304002 |
|
1 |
0.053 |
|
40 |
銷軸 |
18MJ03-3 |
30CrMnTi |
1 |
10.17 |
|
41 |
導向滑靴 |
18MJ04-4 |
ZG35CrMnSi |
1 |
180 |
|
42 |
銷軌軸 |
18MJ04-9 |
18Cr2Ni4WA |
1 |
92 |
|
43 |
軸 |
12MJ10-14 |
30CrMnTi |
1 |
10.34 |
|
44 |
JB/T 7940.1-1995 油杯 M10×1 |
2100303001 |
|
1 |
|
|
45 |
驅動輪 |
18MJ04-3 |
18Cr2Ni4WA |
1 |
102 |
|
46 |
接頭座(G1/2",KJR16) |
18MJ69-1 |
45# |
2 |
0.12 |
|
47 |
63 泄壓閥：1/2″ |
1990800001 |
|
5 |
0.57 |
|
48 |
接頭座（G1/2,KJ3-16） |
18MJ69-2 |
45# |
2 |
0.12 |
|
49 |
接頭座(G1/2",KJR10) |
18MJ69-3 |
45# |
3 |
0.1 |
|
50 |
接頭座（G1/2,KJ3-10） |
18MJ69-4 |
45# |
3 |
0.12 |
|
51 |
接頭體 |
18MJ690 |
|
1 |
0.26 |
|
52 |
鉸接螺栓G1/2" |
18MJ69-5 |
45# |
2 |
0.15 |
|
53 |
44 減壓閥：1/2″ |
1990800004 |
|
2 |
3.4 |
|
54 |
接頭座（19管G1/2"螺紋） |
18MJ69-6 |
45# |
2 |
0.16 |
|
55 |
接頭座 KJ7-19 |
1110300006 |
45# |
4 |
|
|
56 |
接頭座(KJR19,M33x2) |
18MJ69-14 |
45# |
2 |
|
|
57 |
低壓球閥 Q11F-64P-1″ |
1990701019 |
不銹鋼 |
4 |
|
|
58 |
連接座 |
18MJ69-7 |
45# |
4 |
0.13 |
|
59 |
接頭座 |
18MJ69-8 |
45# |
3 |
0.13 |
|
60 |
接頭座 |
18MJ69-9 |
45# |
1 |
|
|
61 |
接頭座 |
18MJ69-10 |
45# |
3 |
0.15 |
|
62 |
連接套 |
S3-1107003 |
45# |
4 |
0.14 |
|
63 |
接頭座 KJ7-16 |
1110300005 |
45# |
2 |
0.23 |
|
64 |
36H Y型過濾器：1″ |
1990800013 |
|
1 |
|
|
65 |
接頭座 KJ7-25 |
1110300007 |
45# |
1 |
|
|
66 |
39 球閥：1″ |
1990800032 |
|
1 |
|
|
67 |
耐震壓力表 YN-60Z/10MPa |
1990600003 |
|
1 |
0.2 |
|
68 |
阻尼塞 |
MDA01-16 |
Q235-A |
1 |
|
|
69 |
接頭座 KJ7-6 |
1110300001 |
45# |
2 |
|
|
70 |
低濃度甲烷傳感器 GJC4 |
1040400008 |
|
1 |
|
|
71 |
變頻器 TXBP-D2-12-320 |
104030300003 |
|
1 |
|
|
72 |
主控器 TXZK-320 |
104030100005 |
|
1 |
|
|
73 |
電容組/1140 YKdr-1000 |
104031000002 |
|
1 |
|
|
74 |
隔離開關 GM3-250/1140V |
104020301002 |
|
1 |
|
|
75 |
接觸器 CKJ5-125/1.14 AC36V |
104020101001 |
|
2 |
|
|
76 |
漏電閉鎖模塊TX-LDBS-33-0 |
104031200001 |
|
2 |
|
|
77 |
插接件 CA-20JW/KA |
104020801001 |
|
1 |
|
|
78 |
瓦斯斷電儀模塊 DXJ-24/12 |
1040400009 |
|
1 |
|
|
79 |
變壓器 GKB-0.3/1.14/36V/28V/25V/20V |
104020202003 |
|
1 |
|
|
80 |
空氣開關 DZ47-60/C10 230/400V |
104020304007 |
|
3 |
|
|
81 |
整流橋 35A/1000V |
104040400003 |
|
2 |
|
|
82 |
電抗器/1140 BZ221-50 |
104030900011 |
|
1 |
|
|
83 |
電抗器/1140 BZ222-20 |
104030900014 |
|
1 |
|
|
84 |
互感器 CT30 50Aac/5Vdc |
104020500002 |
|
2 |
|
|
85 |
互感器 CT30 200Aac/5Vdc |
104020500004 |
|
2 |
|
|
86 |
主接線柱 |
4MJ0815B |
|
4 |
|
|
87 |
五芯接線柱 |
21MJ010302 |
|
1 |
1.6545 |
|
88 |
七芯接線柱 |
4MJ0816 |
|
5 |
0.43114 |
|
89 |
喇叭口 |
4MJ08-20 |
HT250 |
10 |
0.468 |
|
90 |
喇叭口 |
4MJ08-28 |
HT250 |
3 |
1.63 |
|
91 |
鉸接體 |
18MJ6101 |
45# |
1 |
2.19 |
|
92 |
鉸接螺栓M30x1.5 |
18MJ61-1 |
45# |
2 |
0.33 |
|
93 |
單向閥 S10A1 |
1990701008 |
|
2 |
|
|
94 |
液壓排氣閥 QLY-10×0.63 |
1990701020 |
不銹鋼 |
1 |
|
|
95 |
耐震壓力表 YN-60Z/40MPa |
1990600002 |
|
1 |
0.2 |
|
96 |
耐震壓力表 YN-60Z/6MPa |
1990600001 |
|
1 |
0.2 |
|
97 |
液壓用液位液溫計 YWZ-80T |
1990600010 |
|
1 |
|
|
98 |
手液動換向閥 |
19MJ0142 |
|
2 |
19MJ0142 |
|
99 |
鉸接螺栓 |
12MJ55-7 |
45# |
1 |
0.84 |
|
100 |
鉸接座 |
18MJ61-2 |
35# |
1 |
2.3 |
|
101 |
鉸接體 |
18MJ6107 |
45# |
1 |
0.79 |
|
102 |
鉸接螺M27x1.5 |
18MJ61-3 |
45# |
1 |
0.26 |
|
103 |
鉸接體 |
18MJ61-4 |
45# |
1 |
0.36 |
|
104 |
低壓接頭座 |
18MJ61-5 |
35# |
1 |
0.32 |
|
105 |
高壓接頭座 |
18MJ61-6 |
35# |
1 |
0.28 |
|
106 |
接頭體 |
18MJ61-23 |
35# |
1 |
0.16 |
|
107 |
接頭座 |
18MJ61-24 |
45# |
1 |
|
|
108 |
分配體 |
18MJ61-8 |
45# |
1 |
0.42 |
|
109 |
溢流閥 DBDS10K10/315 |
1990701007 |
|
1 |
0.5 |
|
110 |
溢流閥 DBDS6K10/50 |
1990701014 |
|
1 |
0.48 |
|
111 |
接頭座 KJ7-6 |
1110300001 |
45# |
1 |
|
|
112 |
鉸接體 |
18MJ61-16 |
35# |
1 |
0.95 |
|
113 |
鉸接體 |
18MJ61-17 |
35# |
1 |
0.58 |
|
114 |
雙聯齒輪油泵 CBWL-F312/F304-AFP |
1990100012 |
|
1 |
4.5 |
|
115 |
鉸接體 |
18MJ61-18 |
45# |
1 |
2.02 |
|
116 |
鉸接體 |
18MJ61-19 |
35# |
1 |
1.53 |
|
117 |
電磁閥 24GDEY-H6B-T |
1041400007 |
|
1 |
|
|
118 |
電磁閥 XPC34GDEY-H6B-T |
1041400008 |
|
2 |
|
MG132/320-WD電牽引采煤機零部件易損件(18MJ)之三盡在卓力工礦！

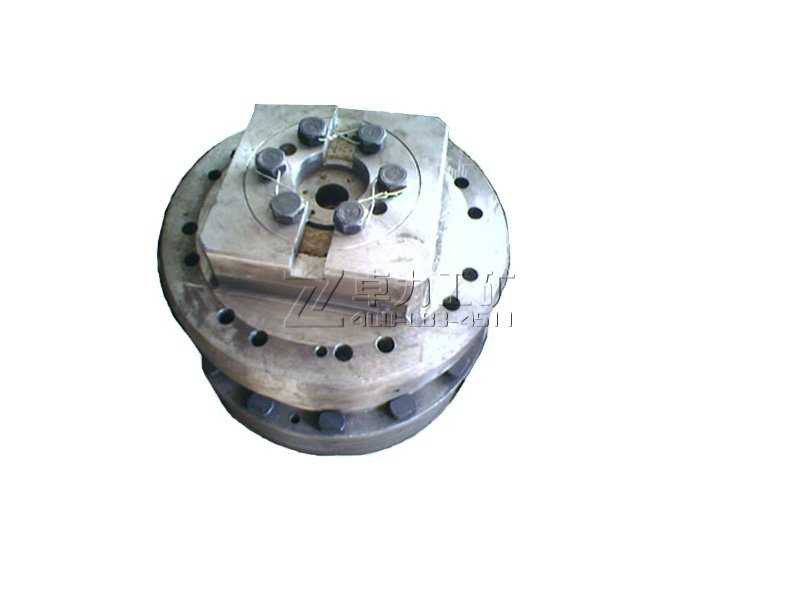

采煤機牽引部雙行星減速器
